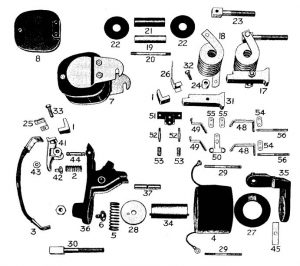

Clark/CCL D.C. Magnetic Contactor Form 100-4RS

Parts
Item OEM Brake Parts DescriptionUS Part #Number Required
1A16-1936Contact (Main-Mov& Sta)
2T-45-216Contact Spring
3A18-2510AConnector
4TB-41-1Coil,115V
4TB-41-2Coil, 230V
4TB-41-3Coil, 550 VDC
5T-45-215Operating Spring
6A16-10878AAdj Screw
7A18-22027AArc Shield, Assembly
8A18-21305Arc Shield Side Plate
9T-38-65Arc Shield Washer
10T-120-99Arc Shield Stud
11T-120-96Arc Shield Stud
12A18-21324Arc Barrier, Front
13A16-8124Arc Barrier, Rear
15A 18-2528Blowout Ear, R.H
16A18-2529Blowout Ear, L.H
17A18-23678ABlowout Coil, Assembly
18A18-23679Blowout Coil
19T-24-92Blowout Core
21T-39-1 69Blowout Core Insulator
22T-38-38Blowout Washer
23Al8-23680Blowout Stud
24A18-23682Blowout Spacer
25A18-2534Arc Horn, Front
26A16-8126Arc Horn, Rear
27A18-671 0Coil Washer
28A18-66731Coil Clamp
29T-7-47Coil Terminal Stud
29T-7-199Coil Terminal Stud
30A18-2551Connector Stud
30A18-!6994Connector Stud
31A18-23681Contact Stud
32T-132-21Contact Screw
33T-121-13Contact Screw
34A18-10736ACore Assembly
35A18-25361AFrame
36A18-25337AMain Arm Assembly
37T-66-1Main Arm Pin
38A18-9491-lMain Arm Bushing, Upper
39A18-9474-9Main Arm Bushing, Lower
40T-40-21Main Arm Bushing, Lower, Brass
41Al8-26288AMain Contact Support-Back Con
42A18-5065AMov Contact Support Adj Screw
43A18-9469Mov Contact Support Lock Nut
44A18-24379Moving Contact Support Pin
45A18-2588Stop Plate
48A18-9465AStationary Control Contact
49A18-9466AStationary Control Contact
50Al8-9464AAuxiliary Contact Bar, Moveable
51A18-2544Aux Contact Insulator
52Al8-9477Aux Contact Stud
53Al8-9483Spring
54Al8-2543Aux Contact Base Plate
55A18-2542Aux Contact Plate
56T-7-47Coil Terminal Stud
56T-7-36Aux Stud
56T-7-150Aux Stud
