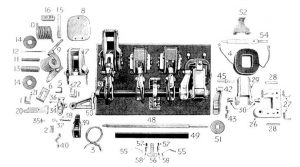

Clark/CCL D.C. Magnetic Contactor Form 150-3R3A

Parts
Item OEM Brake Parts DescriptionUS Part #Number Required
1A16-7980Contact
2A16-8009Contact Spring
3A16-7966AConnector
6A16-8007Arc Horn, Rear
7A16-7965AArc Shield Assembly
8A18-3514Arc Shield Side Plate
9A16-100636AB/0 Coil Assy, Back Connected
9A16-30558AB/0 Coil Assy, Front Connected
10A16-30549Blowout Coil
11A16-8003Blowout Core
12T-7-123Blowout Core Stud
13T-39-79Blowout Core Insulator
14T-38-36Blowout Washer
15A18-23690Blowout Stud
16A16-30557Blowout Terminal
20A18-23691Contact Stud
21T-104-1Contact Screw
22T-104-1Contact Screw
26A16-7967AMagnet Core
27A16-7989Magnet Core Mounting Angle
28T-37-43Magnet Core Pin
29Al6-7968AMagnet Arm
30AI6-7982Magnet Arm Adjusting Bushing
34AI6-30548AMoving Contact Support
35A16-7981AAdjusting Screw
36T-16-30546Moving Cont Sup Stop Screw
37A18-9469Mov Contact Support Lock Nut
38A18-24296Moving Contact Support Pin
39A16-30563AMain Contact Arm
40A16-7975Main Contact Arm Clamp
42A16-13681Operating Arm
43A16-7977Operating Arm Clamp
45A16-7978Operating Stud
48TB-5-14Shaft, 2 Pole
48TB-5-15Shaft, 3 pole
49A77-117246A-2Shaft Insulator, 2 Pole
49A77-117246A-3Shaft Insulator, 3 Pole
50A16-13411AShaft Bearing
51A16-8161Shaft Spacer
52A16-8011AShading Coil, 60 Cycle
53A16-8012AShading Coil, 25 Cycle
54A16-7993Stop Stud, 1-114" Slate
55A16-10264AAux Contact Stationary
56A18-9464AAuxiliary Contact Bar, Moveable
57T-45-38Aux Contact Spring
58T-13-1Aux Contact Spring Stud
