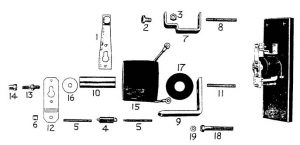

Clark/CCL Type VR Voltage Relay

Parts
Item OEM Brake Parts DescriptionUS Part #Number Required
*A29-7105AVR Relay 7311 .3 Complete
*T-3-139Locking Pin
1A29-81955AFront Contact (movable)
2A29-2691ARear Contact Assembled
3A29-2684Lock Nut
4T-46-24Spring
5A18-1978Adjusting Stud
05aA77-24732Adj Stud
6A29-2689
7A29-2671Rear Contact Bracket
8T-7-36Aux Stud
8T-7-150Aux Stud
9A29-2668Magnet Frame
10A29-2679Magnet Core
11T-7-81Stud (magnet Core)
11T-7-73Stud (magnet Core)
12A29-2669Magnet Arm
13A29-2681Adjusting Stud
14A29-2680
16T-2-33Coil Clamp
17T-38-17Coil Washer
18A29-2676Stud
19T-2-27Brass Washer
