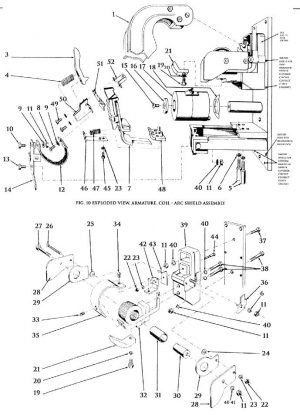

Clark/CCL D.C. Magnetic Contactor Type KD 150 Amp
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| 1 | KKD-151 | Assem Arc Shield | ||
| 2 | KKD-150 | Contact Kit | ||
| 3 | A74-244363 | Movable Contact | ||
| 4 | KKD-152 | Movable Contact Spring | ||
| 5 | A74-243825-1 | Shoulder Bolt | ||
| 6 | T-155-14 | Washer | ||
| 7 | B74-243844-A | Armature Molding Assembly | ||
| 8 | T-121-8 | Slotted Hex Head Screw | ||
| 9 | T-155-11 | Thin Spring Lockwasher | ||
| 10 | T-121-13 | Contact Screw | ||
| 11 | T-115-25 | Hex Nut | ||
| 12 | KKD-154 | Connector Kit | ||
| 13 | T-121-12 | Hex Head Screw | ||
| 14 | A74-243824-2 | Front Connector Plate | ||
| 15 | T-122-61 | Coil Retainer Screw | ||
| 16 | A74-243823-A | Coil Retainer | ||
| 17 | TB-109-1 | Encapsulated Coil 240 VDC | ||
| 17 | TB-109-2 | Coil 120V DC | ||
| 17 | TB-109-9 | Coil, 24 VDC | ||
| 18 | A74-243820 | Coil Spring Washer | ||
| 19 | A74-244395 | Stationary Contact Screw | ||
| 20 | T-155-13 | Thin Spring Lockwasher | ||
| 21 | A74-244356 | Stationary Contact | ||
| 22 | T-115-19 | Hex Nut | ||
| 23 | T-155-10 | Spring Lockwasher | ||
| 24 | A74-244360-2 | Spacer | ||
| 25 | A74-244360-3 | Spacer | ||
| 26 | T-120-142 | Brass Rd. Head Screw | ||
| 27 | T-121-34 | Hex Head Screw | ||
| 28 | A74-243809 | Blowout Ears | ||
| 29 | A74-243806 | Blowout Washer | ||
| 30 | A74-243808-2 | Blowout Core | ||
| 31 | A74-243807-2 | Blowout Core Insulator | ||
| 32 | A74-244353-A | Blowout Coil Assembly | ||
| 33 | T-122-110 | Stl. Flat Head Screw | ||
| 34 | T-123-15 | P.A Rd. Head Screw | ||
| 35 | A74-243804-2 | Rear Arc Runner | ||
| 36 | A74-243805-2 | Blowout Clip | ||
| 37 | T-121-19 | Hex Head Screw | ||
| 38 | T-121-24 | Hex Head Screw | ||
| 39 | C74-243801 | Base Insulator | ||
| 41 | T-155-11 | Thin Spring Lockwasher | ||
| 42 | A74-243803 | Arc Shield Pivot Support | ||
| 43 | A74-243802 | Arc Shield Spring Clip | ||
| 44 | T-121-250 | Stl. Hex Head Screw | ||
| 45 | T-121-244 | Stl. Hex Head Screw | ||
| 46 | A74-243832 | Spring Retainer | ||
| 47 | A74-243833 | Spring | ||
| 48 | A74-243835-A | Pivot Support Assembly | ||
| 49 | T-132-20 | Stl. Fil. Head Screw | ||
| 50 | A74-243841-2 | Contact Spring Retainer | ||
| 51 | B74-243843-2 | Pivot Plate | ||
| 52 | A74-243842 | Clamp |
