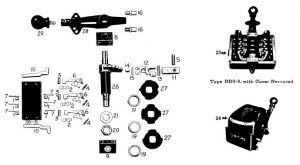

Clark/CCL Master Switch- Type RD, RDS
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| 1a | T-2-420 | Steel Washer | ||
| 1 | A102-237821 | Stationary Contact | ||
| 2 | A101-28965A | Movable Contact | ||
| 3 | A101-34114 | Contact Spring | ||
| 4 | T-45-151 | Operating Spring | ||
| 5 | T-45-150 | Cam Roller Arm Spring | ||
| 6 | A101-34104A | Contact Arm | ||
| 7 | A102-237820-1 | Stud | ||
| 8 | A101-28969A | Front Bearing Block | ||
| 9 | A101-28970A | Rear Bearing Block Assembled | ||
| 10 | A101-34103A | Slate Bracket Assembled | ||
| 11 | A101-28950 | Roller Arm Block | ||
| 12 | A101-28951 | Cam Roller Arm | ||
| 13 | A101-28959 | Roller Arm Pin | ||
| 14 | A101-28958 | Cam Roller | ||
| 15 | A101-28961 | Cam Roller Pin | ||
| 16 | A101-28964 | Stop Stud | ||
| 17 | A101-34125 | Connector | ||
| 18 | A101-34124 | Jumper | ||
| 19 | T-24-220 | Spacer | ||
| 20 | Al 01-28962 | Locknut | ||
| 21 | [l] | Washer | ||
| 22 | [l] | Washer | ||
| 23 | [l] | Case Only | ||
| 24 | [l] | Cover Only | ||
| 25 | [l] | Shaft and Cam Assembly | ||
| 26 | [l] | Shaft & Quadrant Assembly | ||
| 27 | [l] | Cam | ||
| 28 | [l] | Lever | ||
| 29 | [l] | Handle | ||
| 30 | [l] | Slate, RH | ||
| 31 | [!] | Slate, LH | ||
| 32 | [!] | Return Spring |
