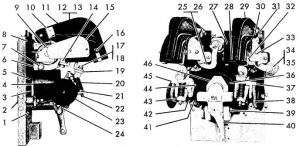

Cutler Hammer No. 954 150 Amp Double Pole D-C Ltl Contactor
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| 1 | 56-3691 | Insulator | ||
| 3 | 17-7193 | Magnet Frame | ||
| 5 | 16-2315 | Washer | ||
| 6 | 16-2359 | Shim Washer | ||
| 7 | 911-5607Z | Hex Screw | ||
| 7 | 916-198 | Lock washer | ||
| 7 | 916-801Z | Washer | ||
| 8 | 17-7117 | Moulded Base | ||
| 9 | 52-877 | Latch | ||
| 10 | 52-876 | Hasp | ||
| 12 | 62-563-3 | L.H Blowout, Complete | ||
| 12 | 62-563-7 | L.H Blowout, Complete | ||
| 13 | 62-563-2 | Arc Shield Complete | ||
| 14 | 18-1376 | Contact Post | ||
| 15 | 19-989-20 | Strap | ||
| 15 | 62-465 | Pole Piece | ||
| 16 | 62-431 | Arc Horn | ||
| 17 | 23-717 | Contact | ||
| 17 | 23-813 | Contact, Silver Faced | ||
| 18 | 911-5606Z | Contact Screw | ||
| 18 | 916-198 | Lock washer | ||
| 19 | 24-4119-3 | L.H Contact Lever, Complete | ||
| 20 | 69-432 | Spring | ||
| 21 | 16-320 | Washer 016 Thick | ||
| 22 | 13-734-2 | Adjusting Pin | ||
| 22 | 29-531 | Retaining Ring | ||
| 23 | 16-840-2l | Insulating Washer | ||
| 25 | 9-460-448 | Blowout Coil Left Hand | ||
| 26 | 25-2099 | Connector | ||
| 27 | 62-563 | B/0 Complete R.H | ||
| 27 | 62-563-6 | R.H Blowout, Complete | ||
| 28 | 73-1631 | Arc Deflector | ||
| 30 | 25-1927-2 | Connector | ||
| 31 | 19-1248-3 | Clamp | ||
| 32 | 79-9197-6 | Bracket | ||
| 34 | 9-460-434 | Blowout Coil | ||
| 35 | 25-1790 | Connector | ||
| 36 | 51-896 | Core | ||
| 37 | 24-4119 | Contact Lever Complete | ||
| 38 | 24-4119-2 | Contact Lever | ||
| 39 | 13-3859-3 | Shaft | ||
| 40 | 18-1576 | Stop | ||
| 40 | 24-4687-3 | Armature Lever | ||
| 41 | 29-1336-2 | Insulating Tube | ||
| 42 | 55-573 | Clamp | ||
| 43 | 24-860 | Contact Lever | ||
| 44 | 13-4330 | Shaft | ||
| 45 | 24-4119-2 | Contact Lever w/Connector | ||
| 46 | 55-1451 | Coil Clamp |
