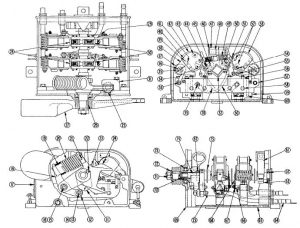

Cutler Hammer P-100 Safety Limit Switch
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| 11 | 54-829 | Cam | ||
| 12 | 29-1465 | Roller | ||
| 13 | 11-789 | Screw | ||
| 14 | 20-253 | Needle Bearing | ||
| 15 | 11-788 | Screw | ||
| 16 | 20-299 | Needle Bearing | ||
| 17 | 47-1673 | Cover | ||
| 18 | 24-1611 | Cam Lever | ||
| 19 | 29-1459-2 | Tube | ||
| 20 | 69-869 | Spring | ||
| 21 | 13-840 | Pin | ||
| 22 | 11-796 | Headless Set Screw | ||
| 23 | 939-481 | Pipe Plug | ||
| 24 | 24-1533 | Stop Lever | ||
| 25 | 18-1083 | Bumper | ||
| 26 | 13-1403 | Key | ||
| 27 | 24-1532 | Weight Lever Straight | ||
| 28 | 24-807 | Contact Lever Left Hand | ||
| 29 | 25-828 | Connector | ||
| 30 | 24-807-2 | Contact Lever Right Hand | ||
| 31 | 55-464 | Bumper Holder | ||
| 32 | 55-468 | Clamp | ||
| 33 | 911-5620Z | Screw | ||
| 33 | 911-5622Z | Screw | ||
| 33 | 11-723-6 | Screw | ||
| 33 | 915-802Z | Nut | ||
| 33 | 916-801Z | Washer | ||
| 33 | 916-763Z | Lockwasher | ||
| 35 | 56-1079-3 | Tube | ||
| 36 | 985-962Z | Core DC (solid) | ||
| 37 | 1016-1004 | Washer | ||
| 38 | 962-1204Z | DC Pole Piece | ||
| 39 | 13-719 | Pin | ||
| 40 | 2222-1485 | Spacer | ||
| 41 | 933-201Z | Clip | ||
| 42 | 2222-386 | Spacer | ||
| 42 | 4973-2 | Arc Shield Side Piece | ||
| 43 | 956-511 | Shaft | ||
| 44 | 956-334 | Shaft | ||
| 45 | 15-663 | Nut | ||
| 46 | 18-1157 | Bumper | ||
| 47 | 914-611 | Bumper Stud | ||
| 48 | 69-647 | Spring | ||
| 49 | 916-1164Z | Shim Washer | ||
| 50 | 20-123 | Contact Lever Support | ||
| 51 | 911-5606Z | Contact Screw | ||
| 51 | 916-763Z | Lockwasher | ||
| 52 | 1321-69 | Contact Segment | ||
| 53 | 662-187 | Blowout Chute DC | ||
| 54 | 916-763Z | Lockwasher | ||
| 54 | 911-5606FZ | Contact Screw | ||
| 55 | 916-763Z | Lockwasher | ||
| 55 | 911-5605FZ | Blowout Coil Screw | ||
| 56 | 79-1145 | Contact Bracket | ||
| 57 | 81-2405 | Base | ||
| 58 | 15-330 | Nut | ||
| 59 | 17-1544 | Mounting Block | ||
| 60 | 11-798 | Screw | ||
| 61 | 24-738 | Stop Lever | ||
| 62 | 29-1543-30 | Bearing | ||
| 63 | 3455-9F1 | Clamp | ||
| 64 | 25-1473 | Connector | ||
| 65 | 17-5282 | Frame | ||
| 66 | 15-332 | Spacer Nut | ||
| 67 | 69-816 | Flat Spring | ||
| 68 | 79-1153 | Bracket | ||
| 69 | 17-1531 | End Plate | ||
| 70 | 29-1543-29 | Bronze Bearing | ||
| 71 | 15-594-3 | Nut | ||
| 71 | 916-2042 | Lockwasher | ||
| 72 | 47-1672 | Locking Plate | ||
| 74 | 13-1392 | Shaft | ||
| 75 | 13-1392-2 | Shaft Insulation |
