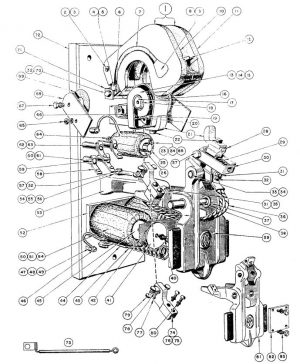

EC&M/Square D NO. 1 Single Pole Spring Closed Type L Line-Arc Contactor, Folio 3
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| 1 | LT-1024-A | Arc Shield Complete | ||
| 2 | FP-23A36 | Binding Screw | ||
| 3 | FP-23A13 | Binding Nut | ||
| 5 | ZO-1150 | Cup Washer | ||
| 6 | 1T-1049 | Arc Shield Hinge | ||
| 7 | LT-1081 | Arc Plate Connector | ||
| 9 | ZO-1121 | Cup Washer | ||
| 10 | LT-1035 | Arc Shield, Left Hand | ||
| 11 | LT-1036 | Arc Shield, Right Hand | ||
| 12 | LT-1032 | Arc Plate | ||
| 13 | LT-1656-A | Blowout Coil | ||
| 14 | LT-1657-A | Blowout Coil | ||
| 15 | LT-1658-A | Blowout Coil | ||
| 16 | LT-1265-A | Blowout Guard | ||
| 17 | LT-1039 | Blowout Core | ||
| 18 | LT-1074 | Insulator | ||
| 19 | LT-1064 | Blowout Ear Spacer | ||
| 20 | LT-1072 | Stud | ||
| 21 | LT-1031 | ContactTip | ||
| 23 | L-1113-A | Retarding Coil | ||
| 24 | L-1114-A | Retarding Coil | ||
| 25 | L-1108 | Stop Bar | ||
| 26 | L-1119 | Washer | ||
| 28 | LT-1028-A | Auxiliary Arm | ||
| 29 | L-1027 | Contact Spring | ||
| 30 | L-1021 | Contact Spring Bracket | ||
| 31 | LT-1092 | Set Screw | ||
| 32 | LT-1091 | Spring Washer | ||
| 33 | LT-1038 | Auxiliary Arm Pin | ||
| 34 | FP-24B12 | Bearing | ||
| 36 | L-1111-A | Connector | ||
| 37 | FP-24B13 | Bearing | ||
| 38 | LT-2037 | Pin | ||
| 39 | L-1102-A | Magnet Arm | ||
| 41 | L-1026 | Core Cap | ||
| 42 | L-3029 | Non-Magnetic Spacer | ||
| 43 | L-1105 | Operating Spring | ||
| 44 | L-1106 | Operating Spring Holder | ||
| 45 | L-3015-A | Core | ||
| 47 | LTZ-1809 | Coil Terminal Stud | ||
| 48 | 1TZ-1810 | Coil Terminal Stud | ||
| 49 | LTZ-1811 | Coil Terminal Stud | ||
| 50 | L-3011-A | Coil f/230 Volt | ||
| 51 | L-3012-A | Coil f/l I5 Volt | ||
| 52 | L-3018-A | Core Plate | ||
| 53 | L-1104-A | Magnet Arm Bracket | ||
| 54 | LT-1044-A | Main Terminal Stud | ||
| 55 | LT-1045-A | Main Termianl Stud | ||
| 56 | LT-1646-A | Main Terminal Stud | ||
| 58 | EL-6-A | Control Circuit Contact | ||
| 60 | EL-13 | Stud | ||
| 61 | EL-14 | Stud | ||
| 62 | EL-25 | Stud | ||
| 63 | EL-26 | Stud | ||
| 64 | DLM-67 | Spring | ||
| 68 | LT-1052 | Blowout Ear | ||
| 69 | LT-1075 | Insulator | ||
| 71 | LT-1050 | Arc Shield Clip | ||
| 73 | L-1109-A | Blowout Connector | ||
| 74 | EL-1-A | Control Circuit Arm, Complete | ||
| 75 | EL-2-A | Control Circuit Arm, Complete | ||
| 76 | EL-3 | Control Circuit Arm Only | ||
| 77 | EL-87 | Spring Retainer | ||
| 78 | EL-49 | Spring | ||
| 79 | EL-84-A | Contact Bridge | ||
| 81 | L-1190-A | Magnet Arm | ||
| 82 | L-3036 | Tie Bar |
