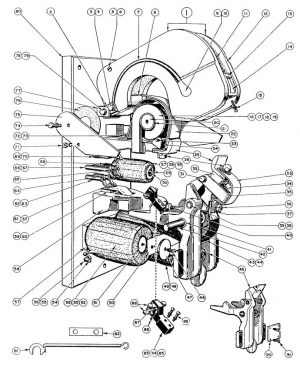

EC&M/Square D NO. 4 & 4A Single Pole Spring Closed Type L Line-Arc Contactor, Folio 3

Parts
Item OEM Brake Parts DescriptionUS Part #Number Required
1LT-4708-AArc Shield
2LT-4734Arc Shield Hinge
5FP-23A36Binding Screw
6FP-23A14Binding Post
7LT-4778-AConnector Arc Plate
8LT-4745Arc Shield Spacer
10ZO-1150Cup Washer
11LT-4741Arc Shield L.H
12LT-4742Arc Shield, R.H
13LT-4720-AArc Plate
14LT-4744Blocks
16LT-4709-AB/O Coil & Contact Bracket
17LT-4710-AB/O Coil
18LT-4711-AB/O Coil
19LT-4712-AB/O Coil
20LT-4757B/O Core
21LT-4749Insl. For B/O Core
22LT-4732-AB/O Guard
23LT-4748Stud
24LT-4743B/O Ear Spacer
25LT-4718ContactTip
27L-4113-ARetarding Coil
28L-4114-ARetarding Coil
29L-3119Washer, For Retarding Coil
30L-4108Stop Bar
32LT-4716-AAux Arm
33LT-4727Aux Arm Guard
34LT-4755Contact Spring
35LT-4737Spring Bracket
36LT-3092Set Screw
38LT-4777Aux Arm Pin
39FP-24B14Oilite Bearing
40LT-3093Set Screw
41FP-24B16Bearing
42LT-4037Mag Arm Pin
43L-4111-AConnector
44L-4121-AConnector
45L-4102-AMagnet Arm
47LT-4067Core Cap
48L-4105Spring (Oper)
49L-4106Stud
50LT-4824Spacer
51L-4132-ACore
52LT-4804-ACoil
53LT-4805-ACoil
55LTZ-1811Coil Terminal Stud
56L-4128Coil Terminal Stud
57LT-4814-AMag Frame
58L-4104-ABracket
59LT-4044-AMain Terminal Stud
60LT-4045-AMain Terminal Stud
62EL-27Stud
63EL-28Stud
64EL-6-AControl Circuit Contact
66EL-33Stud
67EL-34Stud
68L-3120Spring
69LTZ-1810Coil Terminal Stud
70LTZ-1811Coil Terminal Stud
73LT-1068Washer
75LT-4738B/O Ear
76LT-4750Insl. For B/O Ear
77LT-4733Arc Shield Clip
79LT-2091Spring Washer, Large
81L-4109Connector
82LT-4754Connector
83EL-1-AControl Circuit Arm, Complete
84EL-2-AControl Circuit Arm, Complete
85EL-3Control Circuit Arm Only
86EL-87Spring Retainer
87EL-49Spring
88EL-84-AContact Bridge
90L-4148Tie Bar
