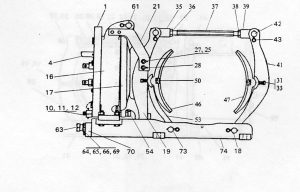

EC&M/Square D 5010 30″ Type F, Series A

Parts
Item OEM Brake Parts DescriptionUS Part #Number Required
150909-013-01Magnet Case Cover
250909-020-01Terminal Shield
751139-040-04Calibration Plate
1051001-067-06Manual Release Nut
1150502-003-32Washer
1250502-601-12Spring
1650909-014-01Magnet Case
1750909-011-51Armature Assembly
1829005-80830Bearing
1950909-009-50Shoe Lever Assembly, Inner
2151007-094-01Bracket
2550502-601-13Spring
2750502-052-16Spacer
2851007-046-01Bearing (Type F30")
2951007-030-50Virtual Center Assembly, RH
3051007-030-51Virtual Center Assembly, LH
3150502-526-17Special Cap Screw
3350502-601-38Shoe Clamp Spring
3550909-006-50Connecting Rod Link RH
3623003-00500Jam Nut, RH
3750909-005-01Connecting Rod
3850903-427-01Jam Nut, LH
3950909-006-51Connecting Rod Link, LH
4050909-005-50Connecting Rod Assembly
4150909-008-50Shoe Lever Assembly, Outboard
4250903-401-20Pin
4350903-402-04Locking Pin
4650909-004-50Brake Shoe Assembly
4750903-808-57Brake Block
4950909-003-50Brake Shoe Assembly
5050909-001-01Lining Wear Indicator
5350909-010-50Shoe Support Lever Assembly
5451007-021-01Manual Release Screw
5651007-035-01Non-Magnetic Spacer
5750909-015-01Armature Gap Indicator
6150903-401-13Pin
6251007-027-51Troque Screw Assembly
6351007-027-02Troques Screw
6450502-051028Spacer
6523690-01580Thrust Washer
6650502-003-30Washer
6950502-551-03Lock Nut
7051007-027-01Torque Screw Plate
7150502-003-31Spring Thrust Plate
7251007-040-01Operating Spring
7350903-401-21Outer & Support Lever Pin
7450909-007-50Frame Assembly
