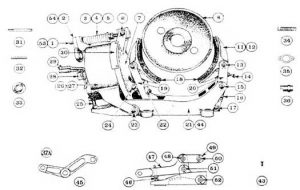

EC&M/Square D No.50 WB Folio 2

Parts
Item OEM Brake Parts DescriptionUS Part #Number Required
*WB-561Magnet CSE Bushing
*WB-5129-ASeries Coil
*51001-071-64Brake Block Kit
*WB-5234-ASpring Rod
*WB-562Bushing Armature/Lower
*WB-564Bushing Shoe Lever
*WB-563Bushing Shoe Lever
1WB-583-AAssembled Shoe, Complete
2WB-581Brake Shoe
4WB-516Brake Lining
5WB-536Bearing
6WB-525Shoe Pin
7WB-587-AWasher, for Shoe Lever Pin
11WB-5200-AShoe Lever w/ Spring Pin
12WB-5317-AShoe Adjusting Screw
13WB-520Shoe Lever Pin
14WB-334Bearing
15WB-522Washer, for Shoe Lever Pin
16WB-5029Equalizing Screw
17WB-524Centering Spring Pin
18WB-518Connecting Rod Pin
19WB-505Bearing
20WB-585-ABearing
21WB-589-ACentering Spring
22WB-532-aConnecting Rod
23WB-523Frame, Complete
24WB-521Balance Lever
24WB-5174-ABearing
25WB-533Shoe Adjusting Screw
26WB-5184-aMagnet Hinge Pin
28Q-368Lead Block
30WB-515Dust Shield
31Q-369Lead Block Stud
32WB-519Centering Spring Pin
33WB-514Spring Collar
34WB-526Centering Spring
35WB-529Terminal Guard
36WB-503Terminal Bushing
37WB-509Retaining Plate, Brass
37aWB-5183Retaining Plate, steel
39WB-5141-AShunt Coil
40WB-508Balance Lever
41WB-506Connecting Rod
42WB-556Shoe Pin Bearing
43WB-559Lining Rivet
