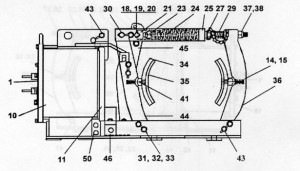

EC&M/Square D 5010 16″ Type F, Series B

Parts
Item OEM Brake Parts DescriptionUS Part #Number Required
150906-223-01Magnet Case Cover
450906-230-01Terminal Shield
550906-166-01Lead Bushing
629206-00665"O" Ring
821008-06120Drive Screw
1050906-215-50Magnet Case & Base Assembly
1150906-215-50Armature
1229005-66446Bearing
1350906-228-50Centering Bracket
1450901-010-07Centering Bracket Spring
1450903-404-02Lining Wear Indicator
1850903-407-02Latch Pin
1929907-03210"E" Ring
2050901-010-06Latch Pin
2150906-117-50Connecting Rod Assembly
2350903-405-01Spring Seat
24WB-416Brake Spring
2550906-137-50Yoke
2650906-141-01Calibration Plate
2750906-136-50Manual Release Nut
2950901-010-05Connecting Rod Spring
3050903-401-05Pin
3150903-402-02Locking Pin
3450906-101-50Brake Shoe w/Lining
3550903-808-54Shoe Lining Kit
3650906-127-50Outboard Shoe Lining
3750903-411-52Elastic Stop Nut Assembly
4350903-401-04Pin
4450906-129-50Inboard Shoe Lever
4550906-119-50Connecting Rod Lever
4650906-115-50Connecting Link
4750903-401-06Pin
5050906-226-01Armature Gap Indicator
6050903-805-54Self-adjusting shoe mechanism Kit
6250906-158-01Connecting Rod
6329013-02120Connecting Rod Bearing
6829005-24121Bearing
7150906-164-50Crank Assembly
7250906-160-01Ratchet Rod
7350903-415-03Crank Pin
7450906-165-50Ratchet Rod End Block
7650901-003-02Spring
7750906-154-50Star Wheel Stop Nut Assembly
7850906-161-01Ratchet Rod Guide
8029005-32221Oilite Bearing
