Magnetek C-Track Festoon

Magnetek C-Track Festoon

C-Track systems are designed to economically festoon round or flat cables used in a variety of industrial environments.

This system is available with the festoon track constructed in standard or heavy duty galvanized steel, or stainless steel. A variety of track support hardware is available to mount the system at recommended five foot intervals. The track is provided in convenient lengths and pieces are connected to each other by means of a simple coupling assembly. All trolleys are provided with ball bearing wheels and are capable of supporting 150 lbs each. Trolleys are also available in a variety of design configurations including tow and control box trolley designs. Magnetek can also build this festoon system completely assembled and wired to your specifications. Please consult the factory with your requirements.



  • Standard and heavy-duty C-Track
  • Stainless steel standard duty systems
  • Single and double flat cable trolley saddles
  • Single and double round cable trolley saddles
  • 3″ and 5″ trolley frames
  • Multiple C-Track hanger configurations

Hanger Assembly Diagram

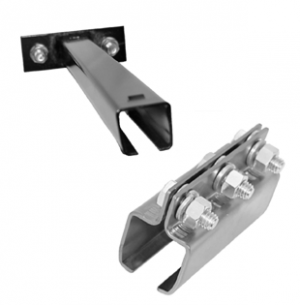

1. Track Sections and Cross Arm Brackets

2. Joint Assembly

3. Tow Arm

4. Cross Arm Mounting Bracket

5. Hanger Assembly
− Standard Profile
− Low Profile
− C-Hanger

6. End Cable Clamp

7. End Stop

8. End Cap

9. Tow Trolley

10. Control Box Trolley

11. Trolley
