Magnetek Radio Remote Controls for Hazardous Locations

Magnetek Radio Remote Controls for Hazardous Locations

Telemotive XLTX, MLTX2, and MLTX

Magnetek offers three radio remote controls ideal for hazardous or potentially explosive locations. Telemotive XLTX and MLTX2 transmitters are ATEX and IECEx approved for EX Zone 0, Zone 1, and Zone 2 environments, while the Telemotive MLTX is intended for applications requiring non-incendive ratings to comply with North American requirements.

The flexibility of a remote control system allows the user to operate farther away from a dangerous situation than wired alternatives. These innovative radio remote controls can be applied to a variety of applications, including petrochemical operations, chemical plants, plane hangers, and industrial painting.

Rugged Design Combines with Innovative Technology

  • Super-tough nylon is made to withstand shock
  • Military grade auxiliary function switches
  • Access code system provides peace-of-mind, as the system only operates the intended equipment
  • Designed to minimize power consumption, providing one of the longest life batteries in the industry today
  • Available in unlicensed 433MHz RF

Select a Transmitter with the Unique Features to Fit Your Application Needs.

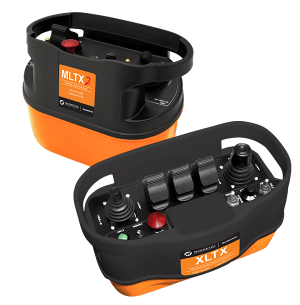

XLTX Offers the Most Options to Configure a Flexible Solution

  • ATEX Approval: II 1 G Ex ia IIC T4 Ga
  • IECEx Approval: Ex ia IIC T4 Ga
  • Choose up to 8 levers, 4 joysticks, or any combination
  • Numerous combinations of toggles, selector switches, and potentiometers
  • Available with detented or stepless controls
  • Custom labels on transmitters per application
  • Spare battery compartment with extra battery to avoid downtime

MLTX2 Provides an Ergonomic, Lightweight Choice for Hazardous Locations

  • ATEX Approval: II 1 G Ex ia IIC T4 Ga
  • IECEx Approval: Ex ia IIC T4 Ga
  • Choose up to 7 levers, 3 joysticks, or any combination
  • Numerous combinations of toggles, selector switches, and potentiometers
  • Available with detented or stepless controls
  • Custom labels on transmitters per application

MLTX Delivers a Cost-Effective Option to Meet North American Requirements

  • Non-incendive transmitter for use in hazardous locations requiring ISA 12.12.01 Class I and Class II, Division 2, Group A, B, C, D, E, F and G
  • Choose up to 7 levers or 2 joysticks
  • Available proportional, 1, 2, 3, or 5 speeds in a non-detent lever or joystick
  • Rechargeable NiMH battery pack standard

Receivers

Combine a transmitter with one of Magnetek’s receivers for a complete radio control system. Receivers can be put into an explosion-proof enclosure which meets NEMA 7 or NEMA 9 standards for added safety.

  • Enrange Flex M Receiver
  • Telemotive 18K Receiver
  • Telemotive inteleSmart Receiver
